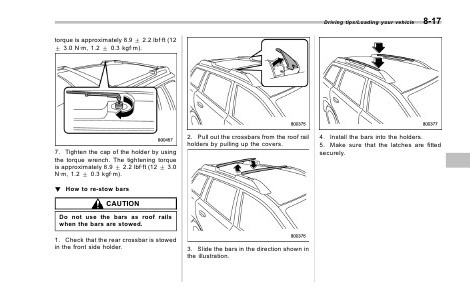

Driving tips/Loading your vehicle
8-17
torque is approximately 8.9 + 2.2 lbf·ft (12
+ 3.0 N·m, 1.2 + 0.3 kgf·m).
2. Pull out the crossbars from the roof rail
holders by pulling up the covers.
7. Tighten the cap of the holder by using
the torque wrench. The tightening torque
is approximately 8.9 + 2.2 lbf·ft (12 + 3.0
N·m, 1.2 + 0.3 kgf·m).
! How to re-stow bars
CAUTION
Do not use the bars as roof rails
when the bars are stowed.
1. Check that the rear crossbar is stowed
in the front side holder.
3. Slide the bars in the direction shown in
the illustration.
4. Install the bars into the holders.
5. Make sure that the latches are fitted
securely.
