Starting and operating/Tire pressure monitoring system (TPMS)
again, turn the ignition switch to the
“LOCK”/“OFF” position and restart the
engine.
. When the switch is pressed to
deactivate the Vehicle Dynamics Control system, the vehicle’s running performance is comparable with that of a
vehicle that does not have a Vehicle
Dynamics Control system. Do not deactivate the Vehicle Dynamics Control
system except when absolutely necessary.
. Even when the Vehicle Dynamics
Control system is deactivated, components of the brake control system may
still activate. When the brake control
system is activated, the Vehicle Dynamics Control operation indicator
light illuminates.

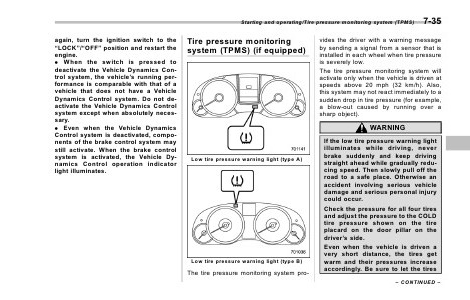

Tire pressure monitoring
system (TPMS) (if equipped)
7-35
vides the driver with a warning message
by sending a signal from a sensor that is
installed in each wheel when tire pressure
is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven at
speeds above 20 mph (32 km/h). Also,
this system may not react immediately to a
sudden drop in tire pressure (for example,
a blow-out caused by running over a
sharp object).
WARNING
Low tire pressure warning light (type A)
Low tire pressure warning light (type B)
The tire pressure monitoring system pro-
If the low tire pressure warning light
illuminates while driving, never
brake suddenly and keep driving
straight ahead while gradually reducing speed. Then slowly pull off the
road to a safe place. Otherwise an
accident involving serious vehicle
damage and serious personal injury
could occur.
Check the pressure for all four tires
and adjust the pressure to the COLD
tire pressure shown on the tire
placard on the door pillar on the
driver’s side.
Even when the vehicle is driven a
very short distance, the tires get
warm and their pressures increase
accordingly. Be sure to let the tires
– CONTINUED –
