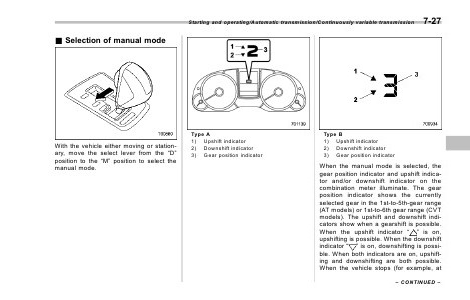

Starting and operating/Automatic transmission/Continuously variable transmission
7-27
& Selection of manual mode
With the vehicle either moving or stationary, move the select lever from the “D”
position to the “M” position to select the
manual mode.
Type A
1) Upshift indicator
2) Downshift indicator
3) Gear position indicator
Type B
1) Upshift indicator
2) Downshift indicator
3) Gear position indicator
When the manual mode is selected, the
gear position indicator and upshift indicator and/or downshift indicator on the
combination meter illuminate. The gear
position indicator shows the currently
selected gear in the 1st-to-5th-gear range
(AT models) or 1st-to-6th gear range (CVT
models). The upshift and downshift indicators show when a gearshift is possible.
When the upshift indicator “ ” is on,
upshifting is possible. When the downshift
indicator “ ” is on, downshifting is possible. When both indicators are on, upshifting and downshifting are both possible.
When the vehicle stops (for example, at
