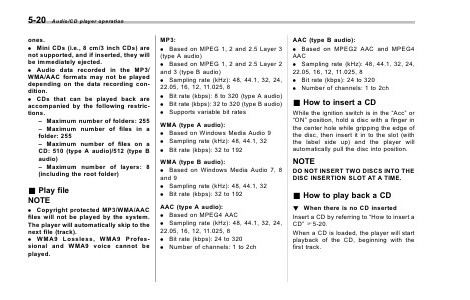

5-20
Audio/CD player operation
ones.
. Mini CDs (i.e., 8 cm/3 inch CDs) are
not supported, and if inserted, they will
be immediately ejected.
. Audio data recorded in the MP3/
WMA/AAC formats may not be played
depending on the data recording condition.
. CDs that can be played back are
accompanied by the following restrictions.
– Maximum number of folders: 255
– Maximum number of files in a
folder: 255
– Maximum number of files on a
CD: 510 (type A audio)/512 (type B
audio)
– Maximum number of layers: 8
(including the root folder)
& Play file
NOTE
. Copyright protected MP3/WMA/AAC
files will not be played by the system.
The player will automatically skip to the
next file (track).
. WMA9 Lossless, WMA9 Professional and WMA9 voice cannot be
played.
MP3:
. Based on MPEG 1, 2 and 2.5 Layer 3
(type A audio)
. Based on MPEG 1, 2 and 2.5 Layer 2
and 3 (type B audio)
. Sampling rate (kHz): 48, 44.1, 32, 24,
22.05, 16, 12, 11.025, 8
. Bit rate (kbps): 8 to 320 (type A audio)
. Bit rate (kbps): 32 to 320 (type B audio)
. Supports variable bit rates
WMA (type A audio):
. Based on Windows Media Audio 9
. Sampling rate (kHz): 48, 44.1, 32
. Bit rate (kbps): 32 to 192
AAC (type B audio):
. Based on MPEG2 AAC and MPEG4
AAC
. Sampling rate (kHz): 48, 44.1, 32, 24,
22.05, 16, 12, 11.025, 8
. Bit rate (kbps): 24 to 320
. Number of channels: 1 to 2ch
& How to insert a CD
While the ignition switch is in the “Acc” or
“ON” position, hold a disc with a finger in
the center hole while gripping the edge of
the disc, then insert it in to the slot (with
the label side up) and the player will
automatically pull the disc into position.
WMA (type B audio):
. Based on Windows Media Audio 7, 8
and 9
. Sampling rate (kHz): 48, 44.1, 32
. Bit rate (kbps): 32 to 192
NOTE
AAC (type A audio):
. Based on MPEG4 AAC
. Sampling rate (kHz): 48, 44.1, 32, 24,
22.05, 16, 12, 11.025, 8 (
