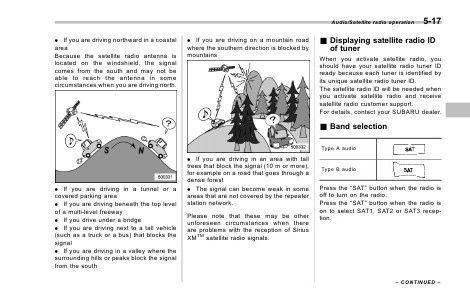

Audio/Satellite radio operation
. If you are driving northward in a coastal
area
Because the satellite radio antenna is
located on the windshield, the signal
comes from the south and may not be
able to reach the antenna in some
circumstances when you are driving north.
. If you are driving on a mountain road
where the southern direction is blocked by
mountains
5-17
& Displaying satellite radio ID
of tuner
When you activate satellite radio, you
should have your satellite radio tuner ID
ready because each tuner is identified by
its unique satellite radio tuner ID.
The satellite radio ID will be needed when
you activate satellite radio and receive
satellite radio customer support.
For details, contact your SUBARU dealer.
& Band selection
Type A audio
. If you are driving in a tunnel or a
covered parking area
. If you are driving beneath the top level
of a multi-level freeway
. If you drive under a bridge
. If you are driving next to a tall vehicle
(such as a truck or a bus) that blocks the
signal
. If you are driving in a valley where the
surrounding hills or peaks block the signal
from the south
. If you are driving in an area with tall
trees that block the signal (10 m or more),
for example on a road that goes through a
dense forest
. The signal can become weak in some
areas that are not covered by the repeater
station network.
Please note that these may be other
unforeseen circumstances when there
are problems with the reception of Sirius
XMTM satellite radio signals.
Type B audio
Press the “SAT” button when the radio is
off to turn on the radio.
Press the “SAT” button when the radio is
on to select SAT1, SAT2 or SAT3 reception.
– CONTINUED –
