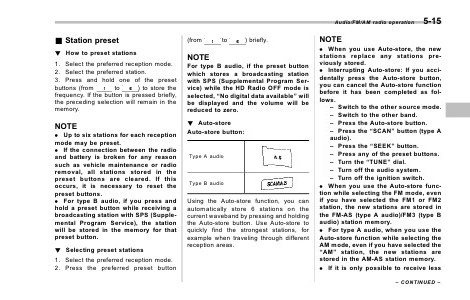

Audio/FM/AM radio operation
& Station preset
(from
! How to preset stations
NOTE
1. Select the preferred reception mode.
2. Select the preferred station.
3. Press and hold one of the preset
to
) to store the
buttons (from
frequency. If the button is pressed briefly,
the preceding selection will remain in the
memory.
NOTE
. Up to six stations for each reception
mode may be preset.
. If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the
preset buttons are cleared. If this
occurs, it is necessary to reset the
preset buttons.
. For type B audio, if you press and
hold a preset button while receiving a
broadcasting station with SPS (Supplemental Program Service), the station
will be stored in the memory for that
preset button.
! Selecting preset stations
1. Select the preferred reception mode.
2. Press the preferred preset button
to
) briefly.
For type B audio, if the preset button
which stores a broadcasting station
with SPS (Supplemental Program Service) while the HD Radio OFF mode is
selected, “No digital data available” will
be displayed and the volume will be
reduced to zero.
! Auto-store
Auto-store button:
Type A audio
Type B audio
Using the Auto-store function, you can
automatically store 6 stations on the
current waveband by pressing and holding
the Auto-store button. Use Auto-store to
quickly find the strongest stations, for
example when traveling through different
reception areas.
5-15
NOTE
. When you use Auto-store, the new
stations replace any stations previously stored.
. Interrupting Auto-store: If you accidentally press the Auto-store button,
you can cancel the Auto-store function
before it has been completed as follo ws.
– Switch to the other source mode.
– Switch to the other band.
– Press the Auto-store button.
– Press the “SCAN” button (type A
audio).
– Press the “SEEK” button.
– Press any of the preset buttons.
– Turn the “TUNE” dial.
– Turn off the audio system.
– Turn off the ignition switch.
. When you use the Auto-store function while selecting the FM mode, even
if you have selected the FM1 or FM2
station, the new stations are stored in
the FM-AS (type A audio)/FM3 (type B
audio) station memory.
. For type A audio, when you use the
Auto-store function while selecting the
AM mode, even if you have selected the
“AM” station, the new stations are
stored in the AM-AS station memory.
. If it is only possible to receive less
– CONTINUED –
