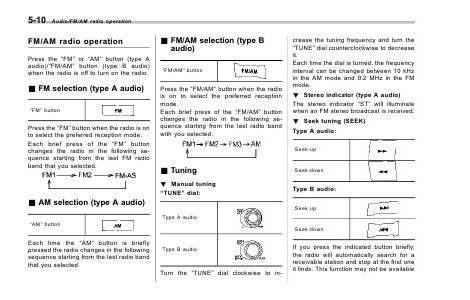

5-10
Audio/FM/AM radio operation
FM/AM radio operation
Press the “FM” or “AM” button (type A
audio)/“FM/AM” button (type B audio)
when the radio is off to turn on the radio.
& FM selection (type A audio)
“FM” button
Press the “FM” button when the radio is on
to select the preferred reception mode.
Each brief press of the “FM” button
changes the radio in the following sequence starting from the last FM radio
band that you selected.
& FM/AM selection (type B
audio)
“FM/AM” button
Press the “FM/AM” button when the radio
is on to select the preferred reception
mode.
Each brief press of the “FM/AM” button
changes the radio in the following sequence starting from the last radio band
with you selected.
crease the tuning frequency and turn the
“TUNE” dial counterclockwise to decrease
it.
Each time the dial is turned, the frequency
interval can be changed between 10 kHz
in the AM mode and 0.2 MHz in the FM
mode.
! Stereo indicator (type A audio)
The stereo indicator “ST” will illuminate
when an FM stereo broadcast is received.
! Seek tuning (SEEK)
Type A audio:
Seek up
& Tuning
! Manual tuning
“TUNE
