3-58
Instruments and controls/Mirrors
applicator.

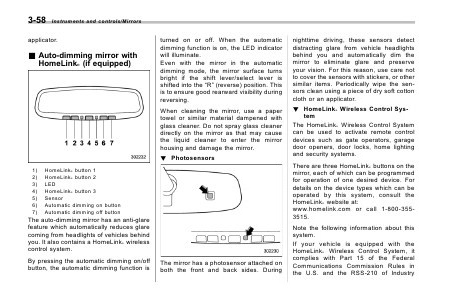

& Auto-dimming mirror with
HomeLink® (if equipped)
turned on or off. When the automatic
dimming function is on, the LED indicator
will illuminate.
Even with the mirror in the automatic
dimming mode, the mirror surface turns
bright if the shift lever/select lever is
shifted into the “R” (reverse) position. This
is to ensure good rearward visibility during
reversing.
When cleaning the mirror, use a paper
towel or similar material dampened with
glass cleaner. Do not spray glass cleaner
directly on the mirror as that may cause
the liquid cleaner to enter the mirror
housing and damage the mirror.
! Photosensors
1)
2)
3)
4)
5)
6)
7)
HomeLink® button 1
HomeLink® button 2
LED
HomeLink® button 3
Sensor
Automatic dimming on button
Automatic dimming off button
The auto-dimming mirror has an anti-glare
feature which automatically reduces glare
coming from headlights of vehicles behind
you. It also conta [
