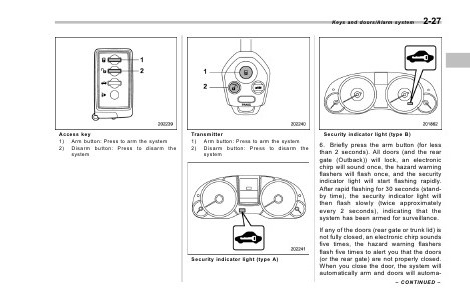

Keys and doors/Alarm system
Access key
1) Arm button: Press to arm the system
2) Disarm button: Press to disarm the
system
Transmitter
1) Arm button: Press to arm the system
2) Disarm button: Press to disarm the
system
Security indicator light (type A)
2-27
Security indicator light (type B)
6. Briefly press the arm button (for less
than 2 seconds). All doors (and the rear
gate (Outback)) will lock, an electronic
chirp will sound once, the hazard warning
flashers will flash once, and the security
indicator light will start flashing rapidly.
After rapid flashing for 30 seconds (standby time), the security indicator light will
then flash slowly (twice approximately
every 2 seconds), indicating that the
system has been armed for surveillance.
If any of the doors (rear gate or trunk lid) is
not fully closed, an electronic chirp sounds
five times, the hazard warning flashers
flash five times to alert you that the doors
(or the rear gate) are not properly closed.
When you close the door, the system will
automatically arm and doors will automa– CONTINUED –
