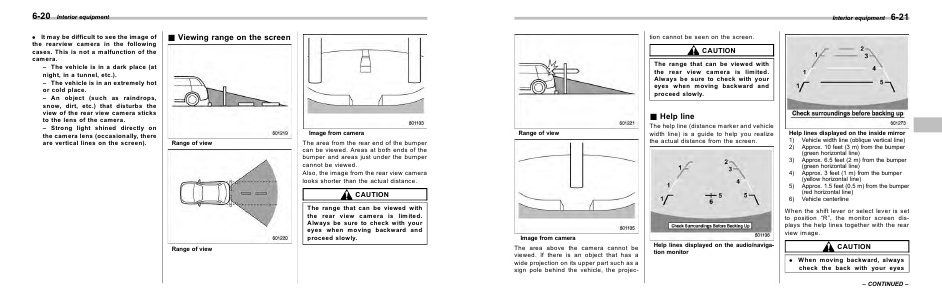

Interior equipment
6-21
tion cannot be seen on the screen.
CAUTION
The range that can be viewed with
the rear view camera is limited.
Always be sure to check with your
eyes when moving backward and
proceed slowly.
& Help line
Range of view
The help line (distance marker and vehicle
width line) is a guide to help you realize
the actual distance from the screen.
When the shift lever or select lever is set
to position “R”, the monitor screen displays the help lines together with the rear
view image.
Image from camera
The area above the camera cannot be
viewed. If there is an object that has a
wide projection on its upper part such as a
sign pole behind the vehicle, the projec-
Help lines displayed on the inside mirror
1) Vehicle width line (oblique vertical line)
2) Approx. 10 feet (3 m) from the bumper
(green horizontal line)
3) Approx. 6.5 feet (2 m) from the bumper
(green horizontal line)
4) Approx. 3 feet (1 m) from the bumper
(yellow horizontal line)
5) Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
6) Vehicle centerline
Help lines displayed on the audio/navigation monitor
CAUTION
. When moving backward, always
check the back with your eyes
– CONTINUED –
