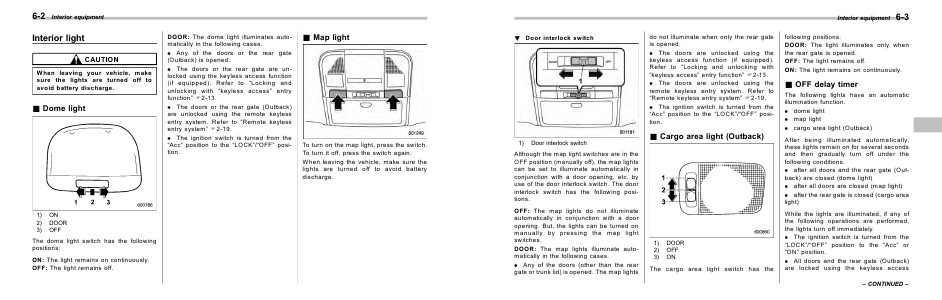

Interior equipment
! Door interlock switch
1)
Door interlock switch
do not illuminate when only the rear gate
is opened.
. The doors are unlocked using the
keyless access function (if equipped).
Refer to “Locking and unlocking with
“keyless access” entry function” F2-13.
. The doors are unlocked using the
remote keyless entry system. Refer to
“Remote keyless entry system” F2-19.
. The ignition switch is turned from the
“Acc” position to the “LOCK”/“OFF” position.
& Cargo area light (Outback)
Although the map light switches are in the
OFF position (manually off), the map lights
can be set to illuminate automatically in
conjunction with a door opening, etc. by
use of the door interlock switch. The door
interlock switch has the following positions.
OFF: The map lights do not illuminate
automatically in conjunction with a door
opening. But, the lights can be turned on
manually by pressing the map light
switches.
DOOR: The map lights illuminate automatically in the following cases.
. Any of the doors (other than the rear
gate or trunk lid) is opened. The map lights
1)
2)
3)
DOOR
OFF
ON
The cargo area light switch has the
6-3
following positions.
DOOR: The light illuminates only when
the rear gate is opened.
OFF: The light remains off.
ON: The light remains on continuously.
& OFF delay timer
The following lights have an automatic
illumination function.
. dome light
. map light
. cargo area light (Outback)
After being illuminated automatically,
these lights remain on for several seconds
and then gradually turn off under the
following conditions.
. after all doors and the rear gate (Outback) are closed (dome light)
. after all doors are closed (map light)
. after the rear gate is closed (cargo area
light)
While the lights are illuminated, if any of
the following operations are performed,
the lights turn off immediately.
. The ignition switch is turned from the
“LOCK”/“OFF” position to the “Acc” or
“ON” position.
. All doors and the rear gate (Outback)
are locked using the keyless access
– CONTINUED –
