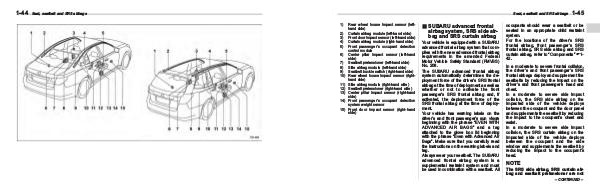

Seat, seatbelt and SRS airbags
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
Rear wheel house impact sensor (left-
hand side)
Curtain airbag module (left-hand side)
Front door impact sensor (left-hand side)
Curtain airbag module (right-hand side)
Front passenger’s occupant detection
control module
Center pillar impact sensor (left-hand
side)
Seatbelt pretensioner (left-hand side)
Side airbag module (left-hand side)
Seatbelt buckle switch (right-hand side)
Rear wheel house impact sensor (right-
hand side)
Side airbag module (right-hand side)
Seatbelt pretensioner (right-hand side)
Center pillar impact sensor (right-hand
side)
Front passenger’s occupant detection
system weight sensor
Front door impact sensor (right-hand
side)
& SUBARU advanced frontal
airbag system, SRS side air-
bag and SRS curtain airbag
Your vehicle is equipped with a SUBARU
advanced frontal airbag system that com-
plies with the new advanced frontal airbag
requirements in the amended Federal
Motor Vehicle Safety Standard (FMVSS)
No. 208.
The SUBARU advanced frontal airbag
system automatically determines the de-
ployment force of the driver’s SRS frontal
airbag at the time of deployment as well as
whether or not to activate the front
passenger’s SRS frontal airbag and, if
activated, the deployment force of the
SRS frontal airbag at the time of deploy-
ment.
Your vehicle has warning labels on the
driver’s and front passenger’s sun visors
beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag
attached to the glove box lid beginning
with the phrase “Even with Advanced Air
Bags”. Make sure that you carefully read
the instructions on the warning labels and
tag.
Always wear your seatbelt. The SUBARU
advanced frontal airbag system is a
supplemental restraint system and must
be used in combination with a seatbelt. All
1-45
occupants should wear a seatbelt or be
seated in an appropriate child restraint
system.
For the locations of the driver’s SRS
frontal airbag, front passenger’s SRS
frontal airbag, SRS side airbag and SRS
curtain airbag, refer to “Components” F1-
42.
In a moderate to severe frontal collision,
the driver’s and front passenger’s SRS
frontal airbags deploy and supplement the
seatbelts by reducing the impact on the
driver’s and front passenger’s head and
chest.
In a moderate to severe side impact
collision, the SRS side airbag on the
impacted side of the vehicle deploys
between the occupant and the door panel
and supplements the seatbelt by reducing
the impact to the occupant’s chest and
waist.
In a moderate to severe side impact
collision, the SRS curtain airbag on the
impacted side of the vehicle deploys
between the occupant and the side
window and supplements the seatbelt by
reducing the impact to the occupant’s
head.
NOTE
The SRS side airbag, SRS curtain air-
bag and seatbelt pretensioner are not
– CONTINUED –
