Driving tips

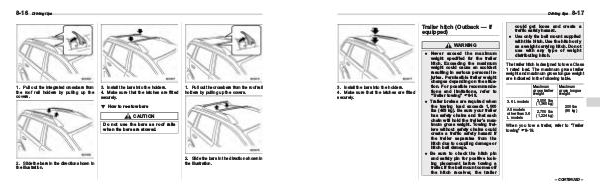

Trailer hitch (Outback — if
equipped)
WARNING
3. Install the bars into the holders.
4. Make sure that the latches are fitted
securely.
. Never exceed the maximum
weight specified for the trailer
hitch. Exceeding the maximum
weight could cause an accident
resulting in serious personal in-
juries. Permissible trailer weight
changes depending on the situa-
tion. For possible recommenda-
tions and limitations, refer to
“Trailer towing” F8-19.
. Trailer brakes are required when
the towing load exceeds 1,000
lbs (453 kg). Be sure your trailer
has safety chains and that each
chain will hold the trailer’s max-
imum gross weight. Towing trai-
lers without safety chains could
create a traffic safety hazard if
the trailer separates from the
hitch due to coupling damage or
hitch ball damage.
. Be sure to check the hitch pin
and safety pin for positive lock-
ing placement before towing a
trailer. If the ball mount comes off
the hitch receiver, the trailer
8-17
could get loose and create a
traffic safety hazard.
. Use only the ball mount supplied
with this hitch. Use the hitch only
as a weight carrying hitch. Do not
use with any type of weight
distributing hitch.
The trailer hitch is designed to tow a Class
1 rated load. The maximum gross trailer
weight and maximum gross tongue weight
are indicated in the following table.
Maximum
gross trailer
weight
3.6 L models 3,000 lbs
(1,360 kg)
All models
other than 3.6
L models 2,700 lbs
(1,224 kg)
Maximum
gross tongue
weight
200 lbs
(90 kg)
When you tow a trailer, refer to “Trailer
towing” F8-19.
– CONTINUED –
