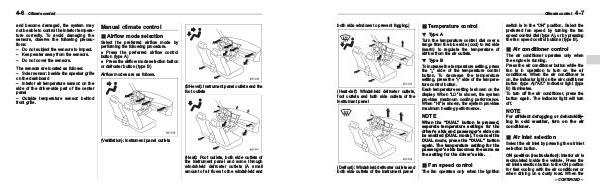

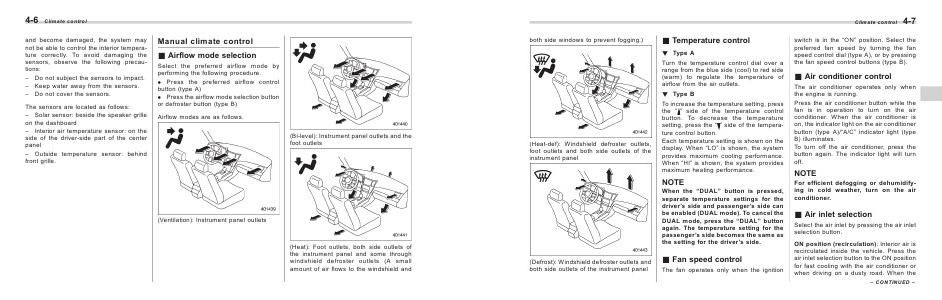

4-6 Climate control
and become damaged, the system may not be able to control the interior temperature correctly. To avoid damaging the sensors, observe the following precautions:
– Do not subject the sensors to impact. – Keep water away from the sensors. – Do not cover the sensors.
The sensors are located as follows:
– Solar sensor: beside the speaker grille on the dashboard
– Interior air temperature sensor: on the side of the driver-side part of the center panel
– Outside temperature sensor: behind front grille.
Manual climate control
& Airflow mode selection
Select the preferred airflow mode by performing the following procedure.
. Press the preferred airflow control button( type A)
. Press the airflow mode selection button or defroster button( type B)
Airflow modes are as follows.
( Bi-level): Instrument panel outlets and the foot outlets
( Ventilation): Instrument panel outlets
( Heat): Foot outlets, both side outlets of the instrument panel and some through windshield defroster outlets( A small amount of air flows to the windshield and
