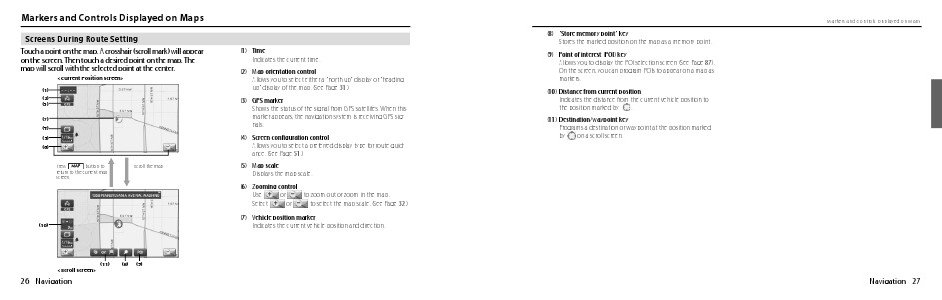

Markers and Controls Displayed on Maps
Screens During Route Setting
Touch a point on the map. A crosshair (scroll mark) will appear
on the screen. Then touch a desired point on the map. The
map will scroll with the selected point at the center.
(1)
(2)
(3)
(1) Time
Indicates the current time.
(2) Map orientation control
Allows you to select either a "north up" display or "heading
up" display of the map. (See Page 31.)
(3) GPS marker
Shows the status of the signal from GPS satellites. When this
marker appears, the navigation system is receiving GPS signals.
(7)
(4)
(4) Screen configuration control
Allows you to select a preferred display type for route guidance. (See Page 51.)
(5)
(6)
Press
button to
return to the current map
screen.
Scroll the map
(5) Map scale
Displays the map scale.
(6) Zooming control
Use
or
to zoom out or zoom in the map.
Select
or
to select the map scale. (See Page 32.)
(7) Vehicle position marker
Indicates the current vehicle position and direction.
(10)
26 Navigation
(11)
(8)
(9)
