Setting the audio

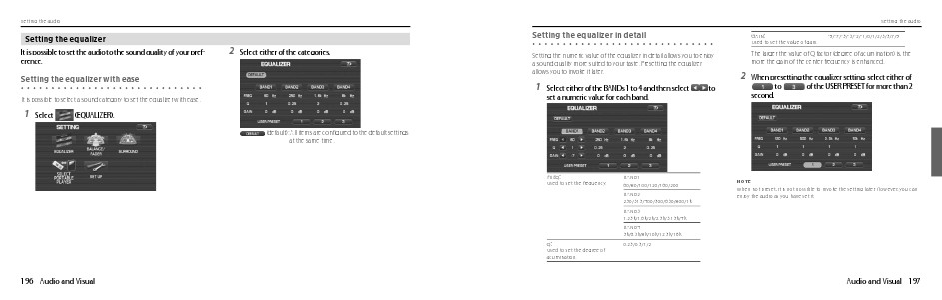

Setting the equalizer in detail
GAIN:
Used to set the value of gain.
Setting the numeric value of the equalizer in detail allows you to enjoy
a sound quality more suited to your taste. Presetting the equalizer
allows you to invoke it later.
1
Select either of the BANDs 1 to 4 and then select
set a numeric value for each band.
FREQ:
Used to set the frequency.
BAND1
60/80/100/120/160/200
BAND2
250/315/400/500/630/800/1k
to
-9/-7/-5/-3/-2/-1/0/1/2/3/5/7/9
The larger the value of Q factor (degree of acumination) is, the
more the gain of the center frequency is enhanced.
2
When presetting the equalizer setting, select either of
to
of the USER PRESET for more than 2
second.
NOTE
When not preset, it is not possible to invoke the setting later. However, you can
enjoy the audio as you have set it.
BAND3
1.25k/1.6k/2k/2.5k/3.15k/4k
BAND4
5k/6.3k/8k/10k/12.5k/16k
Q:
Used to set the degree of
acumination.
0.25/0.5/1/2
Audio and Visual 197
