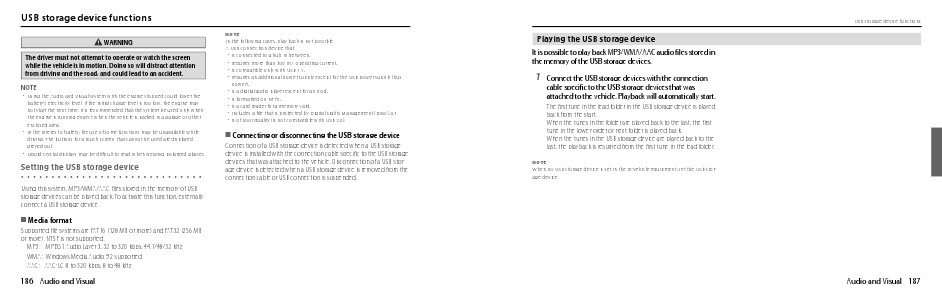

USB storage device functions
WARNING
The driver must not attempt to operate or watch the screen
while the vehicle is in motion. Doing so will distract attention
from driving and the road, and could lead to an accident.
NOTE
• Using the Audio and Visual System with the engine stopped could lower the
battery's electricity level. If the initial charge level is too low, the engine may
not start the next time. It is recommended that the system be used only when
the engine is running expect when the vehicle is parked in a garage or other
enclosed area.
• In the interest of safety, the use of some functions may be unavailable while
driving. The buttons for a touch screen that cannot be used are displayed
greyed out.
• Liquid-crystal displays may be difficult to read when wearing polarized glasses.
Setting the USB storage device
Using this system, MP3/WMA/AAC files stored in the memory of USB
storage devices can be played back. To activate this function, externally
connect a USB storage device.
I Media format
Supported file systems are FAT16 (128 MB or more) and FAT32 (256 MB
or more). NTSF is not supported.
MP3: MPEG1 Audio Layer 3, 32 to 320 kbps, 44.1/48/32 kHz
WMA: Windows Media Audio 9.2 supported
AAC: AAC-LC 8 to 320 kbps, 8 to 48 kHz
186 Audio and Visual
NOTE
In the following cases, play back is not possible.
A USB connection device that:
• is connected to a hub in between,
• requires more than 500 mA operating current,
• is compatible only with USB 1.1,
• requires an additional power supply except for the USB power supply (bus
power),
• is a digital audio player except for an iPod,
• is formatted on NTFS,
• is a card reader for a memory card,
• includes a file that is protected by Digital Rights Management (DRM), or
• is of poor quality (is not compatible with USB 2.0).
I Connecting or disconnecting the USB storage device
Connection of a USB storage device is detected when a USB storage
device is installed with the connection cable specific to the USB storage
devices that was attached to the vehicle. Disconnection of a USB storage device is detected when a USB storage device is removed from the
connection cable or USB connection is suspended.
