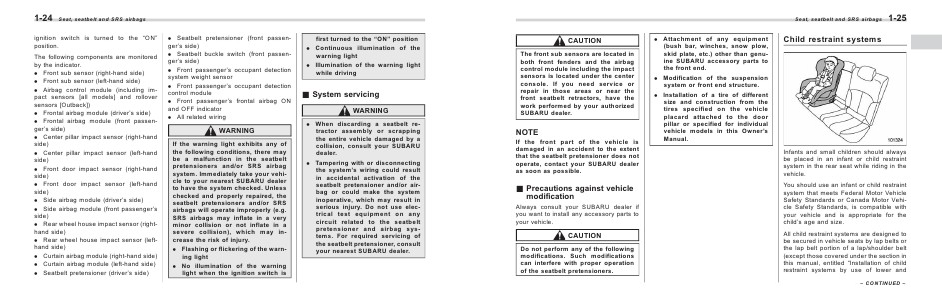

1-24
Seat, seatbelt and SRS airbags
ignition switch is turned to the “ON”
position.
The following components are monitored
by the indicator.
. Front sub sensor (right-hand side)
. Front sub sensor (left-hand side)
. Airbag control module (including impact sensors [all models] and rollover
sensors [Outback])
. Frontal airbag module (driver’s side)
. Frontal airbag module (front passenger’s side)
. Center pillar impact sensor (right-hand
side)
. Center pillar impact sensor (left-hand
side)
. Front door impact sensor (right-hand
side)
. Front door impact sensor (left-hand
side)
. Side airbag module (driver’s side)
. Side airbag module (front passenger’s
side)
. Rear wheel house impact sensor (righthand side)
. Rear wheel house impact sensor (lefthand side)
. Curtain airbag module (right-hand side)
. Curtain airbag module (left-hand side)
. Seatbelt pretensioner (driver’s side)
. Seatbelt pretensioner (front passenger’s side)
. Seatbelt buckle switch (front passenger’s side)
. Front passenger’s occupant detection
system weight sensor
. Front passenger’s occupant detection
control module
. Front passenger’s frontal airbag ON
and OFF indicator
. All related wiring
WARNING
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehicle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very
minor collision or not inflate in a
severe collision), which may increase the risk of injury.
. Flashing or flickering of the warning light
. No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
. Continuous illumination of the
warning light
. Illumination of the warning light
while driving
& System servicing
WARNING
. When discarding a seatbelt retractor assembly or scrapping
the entire vehicle damaged by a
collision, consult your SUBARU
dealer.
. Tampering with or disconnecting
the system’s wiring could result
in accidental activation of the
seatbelt pretensioner and/or airbag or could make the system
inoperative, which may result in
serious injury. Do not use electrical test equipment on any
circuit related to the seatbelt
pretensioner and airbag systems. For required servicing of
the seatbelt pretensioner, consult
your nearest SUBARU dealer.
