Maintenance and service
4. Pull out the socket.
5. Pull out the bulb from the socket and
replace the bulb with a new one.
11-53

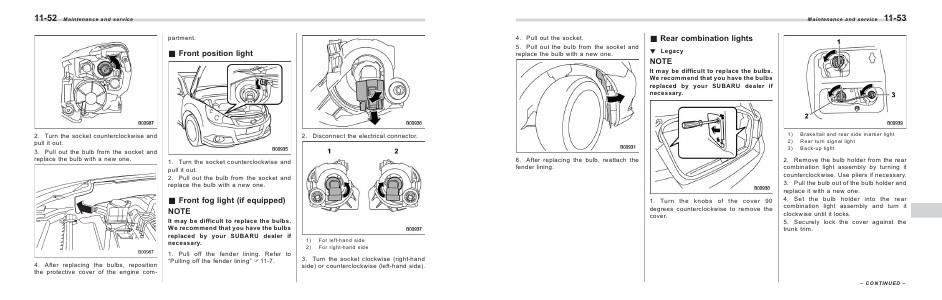

& Rear combination lights
! Legacy
NOTE
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
1)
2)
3)
6. After replacing the bulb, reattach the
fender lining.
1. Turn the knobs of the cover 90
degrees counterclockwise to remove the
cover.
Brake/tail and rear side marker light
Rear turn signal light
Back-up light
2. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise. Use pliers if necessary.
3. Pull the bulb out of the bulb holder and
replace it with a new one.
4. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
5. Securely lock the cover against the
trunk trim.
– CONTINUED –
