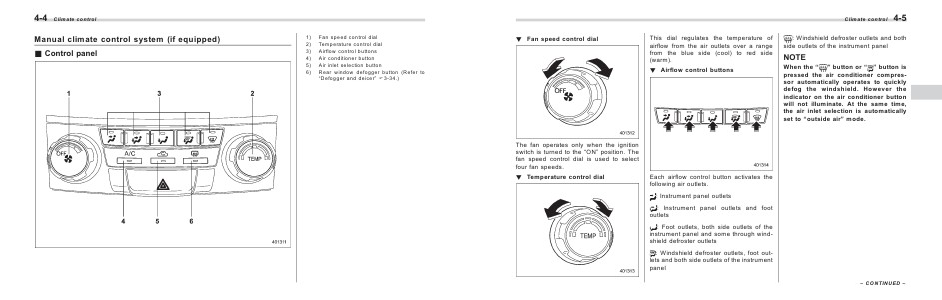

Climate control
! Fan speed control dial
The fan operates only when the ignition
switch is turned to the “ON” position. The
fan speed control dial is used to select
four fan speeds.
! Temperature control dial
This dial regulates the temperature of
airflow from the air outlets over a range
from the blue side (cool) to red side
(warm).
! Airflow control buttons
4-5
: Windshield defroster outlets and both
side outlets of the instrument panel
NOTE
When the “ ” button or “ ” button is
pressed the air conditioner compressor automatically operates to quickly
defog the windshield. However the
indicator on the air conditioner button
will not illuminate. At the same time,
the air inlet selection is automatically
set to “outside air” mode.
Each airflow control button activates the
following air outlets.
: Instrument panel outlets
: Instrument panel outlets and foot
outlets
: Foot outlets, both side outlets of the
instrument panel and some through windshield defroster outlets
: Windshield defroster outlets, foot outlets and both side outlets of the instrument
panel
– CONTINUED –
