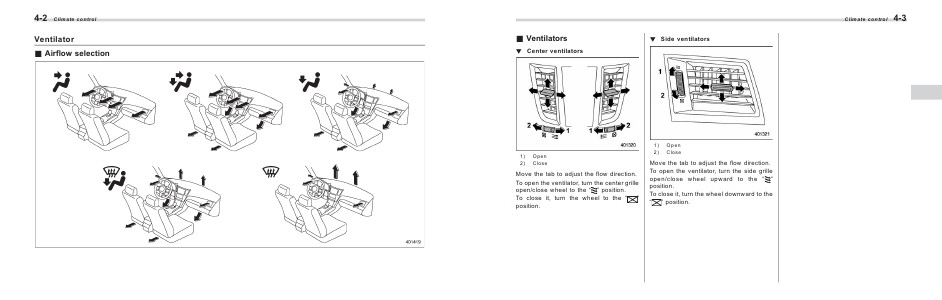

Climate control
& Ventilators
! Side ventilators
! Center ventilators
1)
2)
Open
Close
Move the tab to adjust the flow direction.
To open the ventilator, turn the center grille
open/close wheel to the “ ” position.
To close it, turn the wheel to the “ ”
position.
1)
2)
Open
Close
Move the tab to adjust the flow direction.
To open the ventilator, turn the side grille
open/close wheel upward to the “ ”
position.
To close it, turn the wheel downward to the
“ ” position.
4-3
