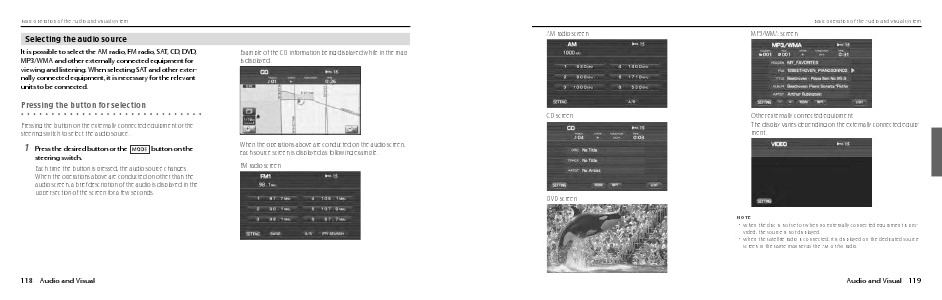

Basic operation of the Audio and Visual system
Selecting the audio source
It is possible to select the AM radio, FM radio, SAT, CD, DVD,
MP3/WMA and other externally connected equipment for
viewing and listening. When selecting SAT and other externally connected equipment, it is necessary for the relevant
units to be connected.
Example of the CD information being displayed while in the map
is displayed.
Pressing the button for selection
Pressing the button on the externally connected equipment or the
steering switch to select the audio source.
1
Press the desired button or the
steering switch.
button on the
Each time the button is pressed, the audio source changes.
When the operations above are conducted on other than the
audio screen, a brief description of the audio is displayed in the
upper section of the screen for a few seconds.
118 Audio and Visual
When the operations above are conducted on the audio screen,
each source screen is displayed as following example.
FM radio screen
