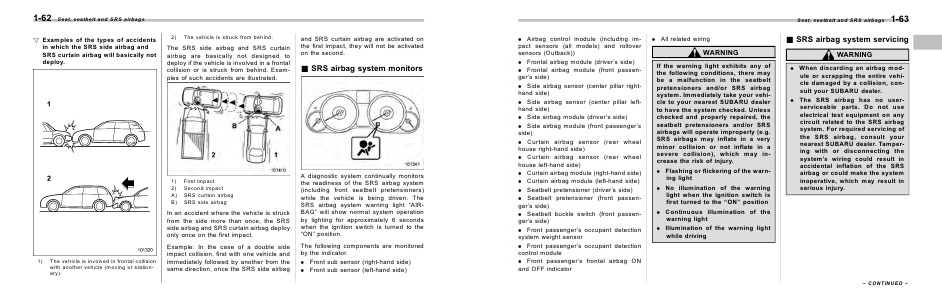

Seat, seatbelt and SRS airbags
. Airbag control module (including impact sensors (all models) and rollover
sensors (Outback))
. Frontal airbag module (driver’s side)
. Frontal airbag module (front passenger’s side)
. Side airbag sensor (center pillar righthand side)
. Side airbag sensor (center pillar lefthand side)
. Side airbag module (driver’s side)
. Side airbag module (front passenger’s
side)
. Curtain airbag sensor (rear wheel
house right-hand side)
. Curtain airbag sensor (rear wheel
house left-hand side)
. Curtain airbag module (right-hand side)
. Curtain airbag module (left-hand side)
. Seatbelt pretensioner (driver’s side)
. Seatbelt pretensioner (front passenger’s side)
. Seatbelt buckle switch (front passenger’s side)
. Front passenger’s occupant detection
system weight sensor
. Front passenger’s occupant detection
control module
. Front passenger’s frontal airbag ON
and OFF indicator
. All related wiring
WARNING
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehicle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very
minor collision or not inflate in a
severe collision), which may increase the risk of injury.
. Flashing or flickering of the warning light
. No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
. Continuous illumination of the
warning light
. Illumination of the warning light
while driving
1-63
& SRS airbag system servicing
WARNING
. When discarding an airbag module or scrapping the entire vehicle damaged by a collision, consult your SUBARU dealer.
. The SRS airbag has no userserviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer. Tampering with or disconnecting the
system’s wiring could result in
accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in
serious injury.
– CONTINUED –
