6-22
Interior equipment
tion cannot be seen on the screen.
CAUTION
The range that can be viewed with
the rear view camera is limited.
Always be sure to check with your
eyes when moving backward and
proceed slowly.

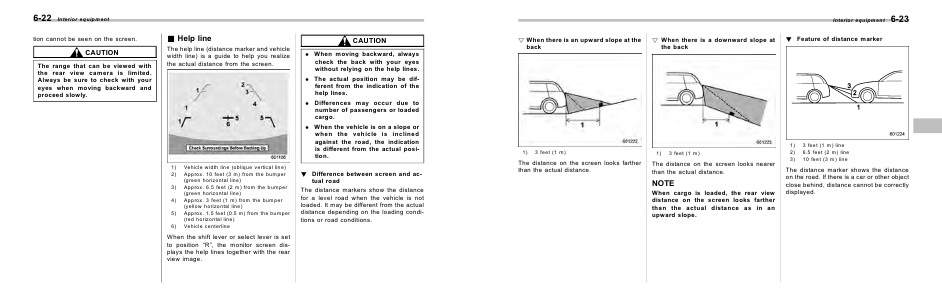

& Help line
The help line (distance marker and vehicle
width line) is a guide to help you realize
the actual distance from the screen.
1)
2)
3)
4)
5)
6)
Vehicle width line (oblique vertical line)
Approx. 10 feet (3 m) from the bumper
(green horizontal line)
Approx. 6.5 feet (2 m) from the bumper
(green horizontal line)
Approx. 3 feet (1 m) from the bumper
(yellow horizontal line)
Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
Vehicle centerline
When the shift lever or select lever is set
to position “R”, the monitor screen displays the help lines together with the rear
view image.
CAUTION
. When moving backward, always
check the back with your eyes
without relying on the help lines.
. The actual position may be different from the indication of the
help lines.
. Differences may occur due F
