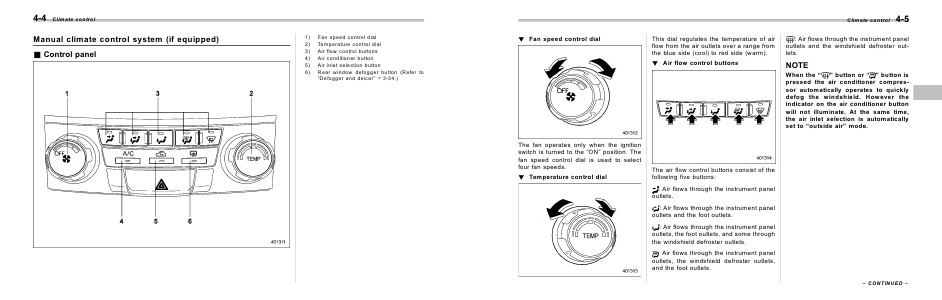

Climate control
! Fan speed control dial
This dial regulates the temperature of air
flow from the air outlets over a range from
the blue side (cool) to red side (warm).
! Air flow control buttons
4-5
: Air flows through the instrument panel
outlets and the windshield defroster outlets.
NOTE
When the “ ” button or “ ” button is
pressed the air conditioner compressor automatically operates to quickly
defog the windshield. However the
indicator on the air conditioner button
will not illuminate. At the same time,
the air inlet selection is automatically
set to “outside air” mode.
The fan operates only when the ignition
switch is turned to the “ON” position. The
fan speed control dial is used to select
four fan speeds.
! Temperature control dial
The air flow control buttons consist of the
following five buttons:
: Air flows through the instrument panel
outlets.
: Air flows through the instrument panel
outlets and the foot outlets.
: Air flows through the instrument panel
outlets, the foot outlets,
