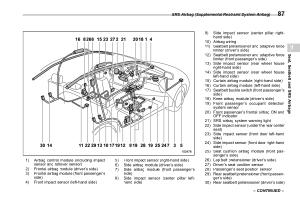

9 ) Side impact sensor ( center pillar righthand side )
10 ) Airbag wiring 11 ) Seatbelt pretensioner and adaptive force limiter ( driver ’ s side )
12 ) Seatbelt pretensioner and adaptive force limiter ( front passenger ’ s side )
13 ) Side impact sensor ( rear wheel house right-hand side )
14 ) Side impact sensor ( rear wheel house left-hand side )
15 ) Curtain airbag module ( right-hand side ) 16 ) Curtain airbag module ( left-hand side ) 17 ) Seatbelt buckle switch ( front passenger ’ s side )
18 ) Knee airbag module ( driver ’ s side )
19 ) Front passenger ’ s occupant detection system sensor
20 ) Front passenger ’ s frontal airbag ON and OFF indicator
21 ) SRS airbag system warning light
22 ) Side impact sensor ( under the rear center seat )
23 ) Side impact sensor ( front door left-hand side )
24 ) Side impact sensor ( front door right-hand side )
25 ) Seat cushion airbag module ( front passenger ’ s side )
26 ) Lap belt pretensioner ( driver ’ s side ) 27 ) Driver ’ s seat position sensor 28 ) Passenger ’ s seat position sensor 29 ) Rear seatbelt pretensioner ( front passenger ’ s side )
30 ) Rear seatbelt pretensioner ( driver ’ s side )
|
1
Seat , Seatbelt and SRS Airbags
|
||||||||||||||||||||||||
– CONTINUED – |
|||||||||||||||||||||||||||
