556

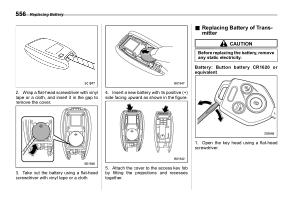

Replacing Battery
& Replacing Battery of Transmitter s11bk02
CAUTION
Before replacing the battery , remove any static electricity .
Battery : Button battery CR1620 or equivalent
2 . Wrap a flat-head screwdriver with vinyl tape or a cloth , and insert it in the gap to remove the cover .
4 . Insert a new battery with its positive (+) side facing upward as shown in the figure .
1 . Open the key head using a flat-head screwdriver .
3 . Take out the battery using a flat-head screwdriver with vinyl tape or a cloth .
5 . Attach the cover to the access key fob by fitting the projections and recesses together .
