Replacing Bulbs

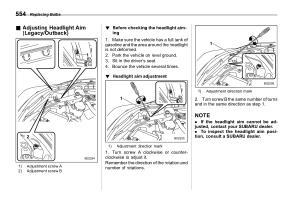

& Adjusting Headlight Aim ( Legacy / Outback ) s11be57
! Before checking the headlight aiming s11be5701
1 . Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed .
2 . Park the vehicle on level ground . 3 . Sit in the driver ’ s seat . 4 . Bounce the vehicle several times .
! Headlight aim adjustment s11be5702
1 ) Adjustment direction mark
2 . Turn screw B the same number of turns and in the same direction as step 1 .
NOTE
. If the headlight aim cannot be adjusted , contact your SUBARU dealer . . To inspect the headlight aim position , consult a SUBARU dealer .
1 ) |
Adjustment screw A |
2 ) |
Adjustment screw B |
1 ) Adjustment direction mark
1 . Turn screw A clockwise or counterclockwise to adjust it .
Remember the direction of the rotation and number of rotations .
