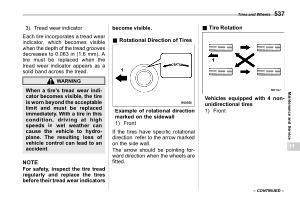

Tires and Wheels 537 |
|
3 ) Tread wear indicator
Each tire incorporates a tread wear indicator , which becomes visible when the depth of the tread grooves decreases to 0.063 in ( 1.6 mm ). A tire must be replaced when the tread wear indicator appears as a solid band across the tread .
|
become visible . |
& Rotational Direction of Tires s11av11 |
& Tire Rotation |
s11av07 |
|||
WARNING |
|||||||
|
When a tire ’ s tread wear indicator becomes visible , the tire is worn beyond the acceptable limit and must be replaced immediately . With a tire in this condition , driving at high speeds in wet weather can cause the vehicle to hydroplane . The resulting loss of vehicle control can lead to an
accident .
|
NOTE
For safety , inspect the tire tread regularly and replace the tires before their tread wear indicators
|
Example of rotational direction marked on the sidewall
1 ) Front
If the tires have specific rotational direction , refer to the arrow marked on the side wall .
The arrow should be pointing forward direction when the wheels are fitted .
|
Vehicles equipped with 4 nonunidirectional tires
1 ) Front
|
Maintenance and Service
11
|
|||||||
– CONTINUED – |
|||||||||||
