516

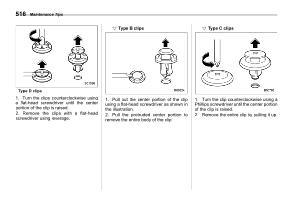

Maintenance Tips
! Type B clips |
s11bi010102 |
! Type C clips |
s11bi010103 |
Type D clips
1 . Turn the clips counterclockwise using a flat-head screwdriver until the center portion of the clip is raised .
2 . Remove the clips with a flat-head screwdriver using leverage .
1 . Pull out the center portion of the clip using a flat-head screwdriver as shown in the illustration .
2 . Pull the protruded center portion to remove the entire body of the clip .
1 . Turn the clip counterclockwise using a Phillips screwdriver until the center portion of the clip is raised .
2 . Remove the entire clip by pulling it up .
