460

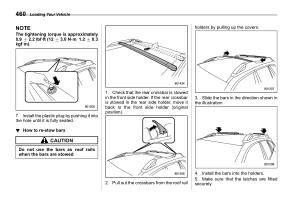

Loading Your Vehicle
NOTE
The tightening torque is approximately 8.9 + 2.2 lbf · ft ( 12 + 3.0 N · m , 1.2 + 0.3 kgf · m ).
holders by pulling up the covers .
7 . Install the plastic plug by pushing it into the hole until it is fully seated .
! How to re-stow bars CAUTION s08aj0803
Do not use the bars as roof rails when the bars are stowed .
1 . Check that the rear crossbar is stowed in the front side holder . If the rear crossbar is stowed in the rear side holder , move it back to the front side holder ( original position ).
3 . Slide the bars in the direction shown in the illustration .
2 . Pull out the crossbars from the roof rail
4 . Install the bars into the holders .
5 . Make sure that the latches are fitted securely .
