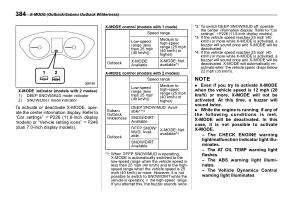

384
X-MODE ( Outback / Subaru Outback Wilderness )
X-MODE indicator ( models with 2 modes ) |
1 ) |
DEEP SNOW / MUD mode indicator |
2 ) |
SNOW / DIRT mode indicator |
To activate or deactivate X-MODE , operate the center information display . Refer to “ Car settings ” FP226 ( 11.6-inch display models ) or “ Vehicle setting icons ” FP246 ( dual 7.0-inch display models ).
X-MODE control ( models with 1 mode ) Speed range
Outback
Low-speed range ( less than 25 mph ( 40 km / h ))
X-MODE : Available
Medium to high-speed range ( 25 mph ( 40 km / h ) or higher )
X-MODE : Not available * 3
X-MODE control ( models with 2 modes ) Speed range
Subaru Outback Wilderness
Outback
Low-speed range ( less than 25 mph ( 40 km / h ))
Medium to high-speed range ( 25 mph ( 40 km / h ) or higher )
DEEP SNOW / MUD : Available * 1 * 2
SNOW / DIRT : Available
DEEP SNOW / MUD : Available
SNOW / DIRT : Available
X-MODE : Not available * 4
* 1 : When DEEP SNOW / MUD is operating , X-MODE is automatically switched to the low-speed range when the vehicle speed is less than 25 mph ( 40 km / h ) and to the highspeed range when the vehicle speed is 25 mph ( 40 km / h ) or more . However , it is not possible to switch to SNOW / DIRT while the vehicle is operating in the high-speed range . If you attempt this , the buzzer sounds twice .
* 2 : To switch DEEP SNOW / MUD off , operate the center information display . Refer to “ Car settings ” FP226 ( 11.6-inch display models ).
* 3 : If the vehicle speed reaches 25 mph ( 40 km / h ) or more while X-MODE is activated , a buzzer will sound once and X-MODE will be deactivated .
* 4 : If the vehicle speed reaches 25 mph ( 40 km / h ) or more while X-MODE is activated , a buzzer will sound once and X-MODE will be deactivated . X-MODE will automatically reactivate when the vehicle speed drops below 22 mph ( 35 km / h ).
NOTE
. Even if you try to activate X-MODE when the vehicle speed is 12 mph ( 20 km / h ) or more , X-MODE will not be activated . At this time , a buzzer will sound twice . . While the engine is running , if any of the following conditions is met , X-MODE will be deactivated . In this case , it is not possible to activate X-MODE . – The CHECK ENGINE warning light / malfunction indicator light illuminates . – The AT OIL TEMP warning light flashes . – The ABS warning light illuminates . – The Vehicle Dynamics Control warning light illuminates .
