cable is used . In this case , be sure to connect the device using the special cable . . When a device that communicates with a PC is connected , power supply or charging may not be possible . . When connect a device for charging , disconnect the device promptly after charging is completed . |
||||||||
|

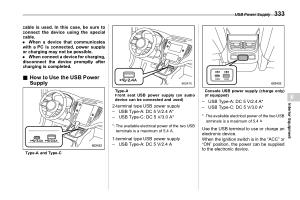

& How to Use the USB Power Supply s06ay01
Type-A and Type-C
|
Type-A Front seat USB power supply ( an audio device can be connected and used )
2-terminal type USB power supply – USB Type-A : DC 5 V / 2.4 A * – USB Type-C : DC 5 V / 3.0 A *
*: The available electrical power of the two USB terminals is a maximum of 5.4 A .
1-terminal type USB power supply – USB Type-A : DC 5 V / 2.4 A
|
Console USB power supply ( charge only ) ( if equipped )
– USB Type-A : DC 5 V / 2.4 A * – USB Type-C : DC 5 V / 3.0 A *
*: The available electrical power of the two USB terminals is a maximum of 5.4 A .
Use the USB terminal to use or charge an electronic device .
When the ignition switch is in the “ ACC ” or “ ON ” position , the power can be supplied to the electronic device .
|
6
Interior Equipment
|
