4 |
||||||||

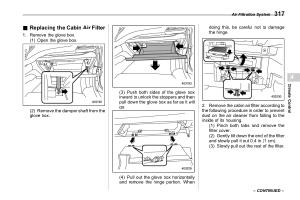

( 2 ) Remove the damper shaft from the glove box . |
( 3 ) Push both sides of the glove box inward to unlock the stoppers and then pull down the glove box as far as it will go . |
2 . Remove the cabin air filter according to the following procedure in order to prevent dust on the air cleaner from falling to the inside of its housing . ( 1 ) Pinch both tabs and remove the filter cover . ( 2 ) Gently tilt down the end of the filter and slowly pull it out 0.4 in ( 1 cm ). ( 3 ) Slowly pull out the rest of the filter . |
Climate Control |
|||||
( 4 ) Pull out the glove box horizontally and remove the hinge portion . When |
||||||||
– CONTINUED – |
