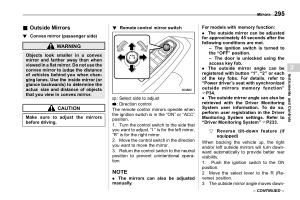

Mirrors 295 |
|||||||||||||
|
& Outside Mirrors s03ap03
! Convex mirror ( passenger side ) s03ap0301
WARNING
Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror . Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes . Use the inside mirror ( or glance backwards ) to determine the actual size and distance of objects that you view in convex mirror .
|
CAUTION
Make sure to adjust the mirrors before driving .
|
! Remote control mirror switch s03ap0302 |
: Select side to adjust : Direction control
The remote control mirrors operate when the ignition switch is in the “ ON ” or “ ACC ” position .
1 . Turn the control switch to the side that you want to adjust . “ L ” is for the left mirror , “ R ” is for the right mirror .
2 . Move the control switch in the direction you want to move the mirror .
3 . Return the control switch to the neutral position to prevent unintentional operation .
|
NOTE
. The mirrors can also be adjusted manually .
|
For models with memory function :
. The outside mirror can be adjusted for approximately 45 seconds after the following conditions are met . – The ignition switch is turned to the “ OFF ” position . – The door is unlocked using the access key fob . . The outside mirror angle can be registered with button “ 1 ”, “ 2 ” or each of the key fobs . For details , refer to “ Power driver ’ s seat with synchronized outside mirrors memory function ” FP34 . . The outside mirror angle can also be retrieved with the Driver Monitoring System user information . To do so , perform user registration in the Driver Monitoring System settings . Refer to “ Driver Monitoring System ” FP233 .
! Reverse tilt-down feature ( if equipped ) s03ap030201
When backing the vehicle up , the right and / or left outside mirrors will turn downward automatically to provide better rear visibility .
1 . Push the ignition switch to the ON position .
2 . Move the select lever to the R ( Reverse ) position .
3 . The outside mirror angle moves down-
– CONTINUED –
|
3
Instruments and Controls
|
