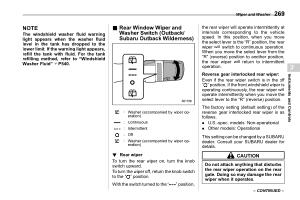

Wiper and Washer 269 |
||||||
|
NOTE
The windshield washer fluid warning light appears when the washer fluid level in the tank has dropped to the lower limit . If the warning light appears , refill the tank with fluid . For the tank refilling method , refer to “ Windshield Washer Fluid ” FP540 .
|
& Rear Window Wiper and Washer Switch ( Outback / Subaru Outback Wilderness )
s03am02
|
: Washer ( accompanied by wiper operation )
: Continuous : Intermittent : Off
: Washer ( accompanied by wiper operation )
|
the rear wiper will operate intermittently at intervals corresponding to the vehicle speed . In this position , when you move the select lever to the “ R ” position , the rear wiper will switch to continuous operation . When you move the select lever from the “ R ” ( reverse ) position to another position , the rear wiper will return to intermittent operation .
Reverse gear interlocked rear wiper :
Even if the rear wiper switch is in the off “ ” position , if the front windshield wiper is operating continuously , the rear wiper will operate intermittently when you move the select lever to the “ R ” ( reverse ) position .
The factory setting ( default setting ) of the reverse gear interlocked rear wiper is as follows .
. U . S . -spec . models : Non-operational . Other models : Operational
|
This setting can be changed by a SUBARU dealer . Consult your SUBARU dealer for details . |
3
Instruments and Controls
|
|
|
! Rear wiper s03am0201
To turn the rear wiper on , turn the knob switch upward .
To turn the wiper off , return the knob switch to the “ ” position .
With the switch turned to the “ ” position ,
|
CAUTION
Do not attach anything that disturbs the rear wiper operation on the rear gate . Doing so may damage the rear wiper when it operates .
– CONTINUED –
|
