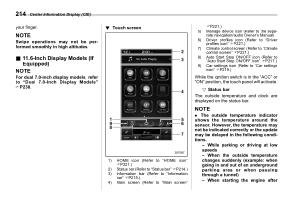

214
Center Information Display ( CID )
your finger .
NOTE
Swipe operations may not be performed smoothly in high altitudes .
& 11.6-Inch Display Models ( If Equipped ) s03bs05
NOTE
For dual 7.0-inch display models , refer to “ Dual 7.0-Inch Display Models ” FP238 .
! Touch screen s03bs0501
1 ) |
HOME icon ( Refer to “ HOME icon ” |
FP221 .) |
2 ) |
Status bar ( Refer to “ Status bar ” FP214 .) |
3 ) |
Information bar ( Refer to “ Information |
bar ” FP215 .) |
4 ) |
Main screen ( Refer to “ Main screen ” |
FP221 .)
5 ) Manage device icon ( Refer to the separate navigation / audio Owner ’ s Manual )
6 ) Driver profiles icon ( Refer to “ Driver profiles icon ” FP221 .)
7 ) Climate control screen ( Refer to “ Climate control screen ” FP221 .)
8 ) Auto Start Stop ON / OFF icon ( Refer to “ Auto Start Stop ON / OFF icon ” FP217 .)
9 ) Car settings icon ( Refer to “ Car settings icon ” FP219 .)
While the ignition switch is in the “ ACC ” or “ ON ” position , the touch panel will activate .
! Status bar s03bs050101
The outside temperature and clock are displayed on the status bar .
NOTE
. The outside temperature indicator shows the temperature around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds – When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel ) – When starting the engine after
