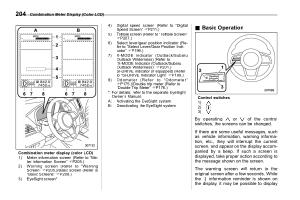

Combination Meter Display ( Color LCD )
Combination meter display ( color LCD ) 1 ) Meter information screen ( Refer to “ Meter Information Screen ” FP205 .)
2 ) Warning screen ( Refer to “ Warning Screen ” FP205 .)/ Basic screen ( Refer to “ Basic Screens ” FP208 .)
3 ) EyeSight screen *
4 ) Digital speed screen ( Refer to “ Digital Speed Screen ” FP211 .)
5 ) Telltale screen ( Refer to “ Telltale Screen ” FP207 .)
6 ) Select lever / gear position indicator ( Refer to “ Select Lever / Gear Position Indicator ” FP199 .)
7 ) X-MODE indicator ( Outback / Subaru Outback Wilderness ) ( Refer to “ X-MODE Indicator ( Outback / Subaru Outback Wilderness )” FP201 .) SI-DRIVE indicator ( if equipped ) ( Refer to “ SI-DRIVE Indicator Light ” FP199 .)
8 ) Odometer ( Refer to “ Odometer ” FP175 .)/ Double trip meter ( Refer to “ Double Trip Meter ” FP176 .)
*: For details , refer to the separate EyeSight Owner ’ s Manual .
A : Activating the EyeSight system B : Deactivating the EyeSight system
& Basic Operation
Control switches 1 ) 2 ) 3 ) s03bn01
By operating or of the control switches , the screens can be changed .
If there are some useful messages , such as vehicle information , warning information , etc ., they will interrupt the current screen , and appear on the display accompanied by a beep . If such a screen is displayed , take proper action according to the message shown on the screen .
The warning screen will return to the original screen after a few seconds . While the information reminder is shown on the display , it may be possible to display
