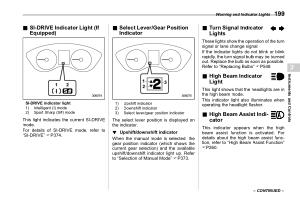

Warning and Indicator Lights 199 |
||||||||||||||||||||||
& SI-DRIVE Indicator Light ( If Equipped ) s03ae52 |
This light indicates the current SI-DRIVE mode .
For details of SI-DRIVE mode , refer to “ SI-DRIVE ” FP374 .
|
& Select Lever / Gear Position Indicator s03ae43 |
The select lever position is displayed on the indicator .
! Upshift / downshift indicator s03ae4305
When the manual mode is selected , the gear position indicator ( which shows the current gear selection ) and the available upshift / downshift indicator light up . Refer to “ Selection of Manual Mode ” FP373 .
|
& Turn Signal Indicator Lights s03ae20
These lights show the operation of the turn signal or lane change signal .
If the indicator lights do not blink or blink rapidly , the turn signal bulb may be burned out . Replace the bulb as soon as possible . Refer to “ Replacing Bulbs ” FP548 .
& High Beam Indicator Light s03ae21
This light shows that the headlights are in the high beam mode .
This indicator light also illuminates when operating the headlight flasher .
|
& High Beam Assist Indicator s03ae83
This indicator appears when the high beam assist function is activated . For details about the high beam assist function , refer to “ High Beam Assist Function ” FP260 .
|
3
Instruments and Controls
|
||||||||||||||||
– CONTINUED – |
||||||||||||||||||||||
