Seat, seatbelt and SRS airbags/SRS airbag (Supplemental Restraint System airbag)

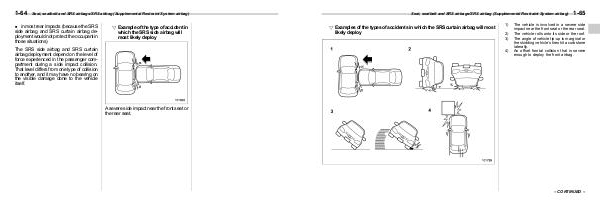

! Examples of the types of accidents in which the SRS curtain airbag will most
likely deploy
S01AH120204
1)
2)
3)
4)
1-65
The vehicle is involved in a severe side
impact near the front seat or the rear seat.
The vehicle rolls onto its side or the roof.
The angle of vehicle tip-up is marginal or
the skidding vehicle’s tires hit a curbstone
laterally.
An offset frontal collision that is severe
enough to deploy the front airbag.
– CONTINUED –
