Seat, seatbelt and SRS airbags/SRS airbag (Supplemental Restraint System airbag)
level differs from one type of collision to
another, and it may have no bearing on the
visible damage done to the vehicle itself.

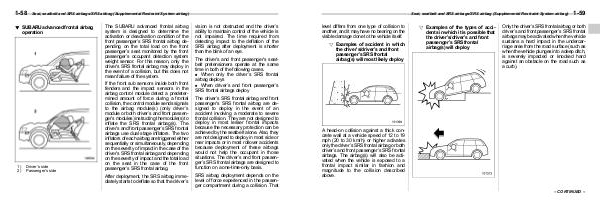

! Examples of accident in which
the driver’s/driver’s and front
passenger’s SRS frontal
airbag(s) will most likely deploy
S01AH120101
! Examples of the types of acci-
dents in which it is possible that
the driver’s/driver’s and front
passenger’s SRS frontal
airbag(s) will deploy
S01AH120102
1-59
Only the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS frontal
airbags may be activated when the vehicle
sustains a hard impact in the undercar-
riage area from the road surface (such as
when the vehicle plunges into a deep ditch,
is severely impacted or knocked hard
against an obstacle on the road such as
a curb).
A head-on collision against a thick con-
crete wall at a vehicle speed of 12 to 19
mph (20 to 30 km/h) or higher activates
only the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS frontal
airbags. The airbag(s) will also be acti-
vated when the vehicle is exposed to a
frontal impact similar in fashion and
magnitude to the collision described
above.
– CONTINUED –
