12-10 Specifications/Fuses and circuits

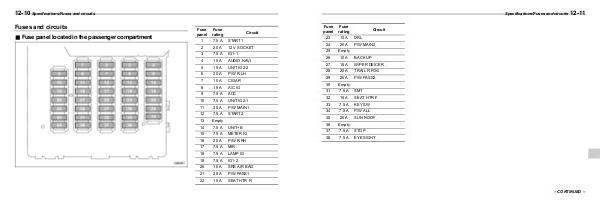

Fuses and circuits
S12AB
& Fuse panel located in the passenger compartment
S12AB01
Fuse
panel Fuse
rating 1 7.5 A START1
2 20 A 12 V SOCKET
3 7.5 A IG1-1
4 15 A AUDIO NAVI
Circuit
5 15 A UNIT IG2-2
6 20 A P/W R.LH
7 10 A CIGAR
8 15 A A/C IG
9 7.5 A ACC
10 7.5 A UNIT IG2-1
11 30 A P/W MAIN1
12 7.5 A START2
13 Empty 14 7.5 A 15 7.5 A METER IG
16 20 A P/W R.RH
17 7.5 A MIR
18 7.5 A LAMP IG
19 7.5 A IG1-2
20 10 A SRS AIR BAG
21 20 A P/W PASS1
22 15 A SEAT HTR R
UNIT+B
