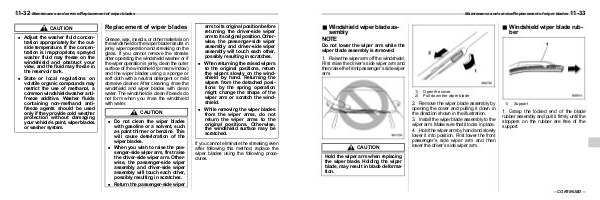

Maintenance and service/Replacement of wiper blades
& Windshield wiper blade as-
sembly
S11AZ01
NOTE
11-33
& Windshield wiper blade rub-
ber
S11AZ02
Do not lower the wiper arm while the
wiper blade assembly is removed.
1. Raise the wiper arm off the windshield.
First raise the driver’s side wiper arm and
then raise the front passenger’s side wiper
arm.
1)
2)
CAUTION
Open the cover
Pull down the wiper blade
2. Remove the wiper blade assembly by
opening the cover and pulling it down in
the direction shown in the illustration.
3. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
4. Hold the wiper arm by hand and slowly
lower it into position. First lower the front
passenger’s side wiper arm and then
lower the driver’s side wiper arm.
1)
Support
1. Grasp the locked end of the blade
rubber assembly and pull it firmly until the
stoppers on the rubber are free of the
support.
Hold the wiper arm when replacing
the wiper blade. Holding the wiper
blade, may result in blade deforma-
tion.
– CONTINUED –
