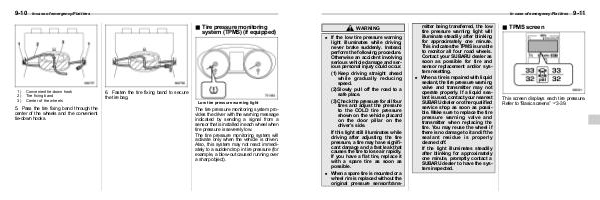

9-10
In case of emergency/Flat tires
& Tire pressure monitoring
system (TPMS) (if equipped)
S09AC02
1)
2)
3)
Convenient tie-down hook
Tire fixing band
Center of the wheels
5. Pass the tire fixing band through the
center of the wheels and the convenient
tie-down hooks.
6. Fasten the tire fixing band to secure
the tire bag.
Low tire pressure warning light
The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused running over
a sharp object).
