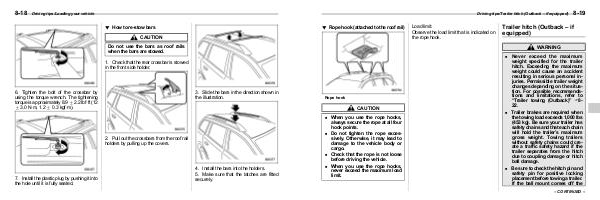

8-18
Driving tips/Loading your vehicle
! How to re-stow bars
S08AJ0803
CAUTION
Do not use the bars as roof rails
when the bars are stowed.
1. Check that the rear crossbar is stowed
in the front side holder.
6. Tighten the bolt of the crossbar by
using the torque wrench. The tightening
torque is approximately 8.9 + 2.2 lbf·ft (12
+ 3.0 N·m, 1.2 + 0.3 kgf·m).
3. Slide the bars in the direction shown in
the illustration.
2. Pull out the crossbars from the roof rail
holders by pulling up the covers.
7. Install the plastic plug by pushing it into
the hole until it is fully seated.
4. Install the bars into the holders.
5. Make sure that the latches are fitted
securely.
