Climate control/Air filtration system

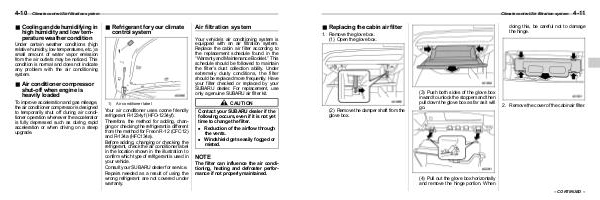

& Replacing the cabin air filter
doing this, be careful not to damage
the hinge.
S04AE01
1. Remove the glove box.
(1) Open the glove box.
(2) Remove the damper shaft from the
glove box.
4-11
(3) Push both sides of the glove box
inward to unlock the stoppers and then
pull down the glove box as far as it will
go.
2. Remove the cover of the cabin air filter.
(4) Pull out the glove box horizontally
and remove the hinge portion. When
– CONTINUED –
