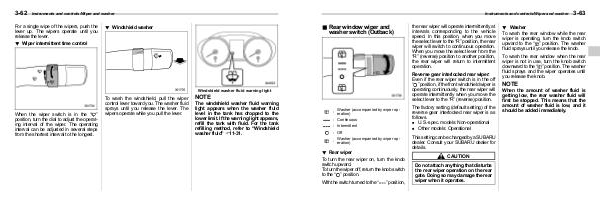

Instruments and controls/Wiper and washer
& Rear window wiper and
washer switch (Outback)
S03AM02
the rear wiper will operate intermittently at
intervals corresponding to the vehicle
speed. In this position, when you move
the select lever to the “R” position, the rear
wiper will switch to continuous operation.
When you move the select lever from the
“R” (reverse) position to another position,
the rear wiper will return to intermittent
operation.
Reverse gear interlocked rear wiper:
Even if the rear wiper switch is in the off
“ ” position, if the front windshield wiper is
operating continuously, the rear wiper will
operate intermittently when you move the
select lever to the “R” (reverse) position.
(accompanied by wiper op-
: Washer
eration)
: Continuous
: Intermittent
: Off
Washer (accompanied by wiper op-
: eration)
! Rear wiper
S03AM0201
To turn the rear wiper on, turn the knob
switch upward.
To turn the wiper off, return the knob switch
to the “ ” position.
With the switch turned to the “
” position,
The factory setting (default setting) of the
reverse gear interlocked rear wiper is as
follows.
. U.S.-spec. models: Non-operational
. Other models: Operational
This setting can be changed by a SUBARU
dealer. Consult your SUBARU dealer for
details.
CAUTION
Do not attach anything that disturbs
the rear wiper operation on the rear
gate. Doing so may damage the rear
wiper when it operates.
3-63
! Washer
S03AM0202
To wash the rear window while the rear
wiper is operating, turn the knob switch
upward to the “ ” position. The washer
fluid sprays until you release the knob.
To wash the rear window when the rear
wiper is not in use, turn the knob switch
downward to the “ ” position. The washer
fluid sprays and the wiper operates until
you release the knob.
NOTE
When the amount of washer fluid is
getting low, the rear washer fluid will
first be stopped. This means that the
amount of washer fluid is low, and it
should be added immediately.
