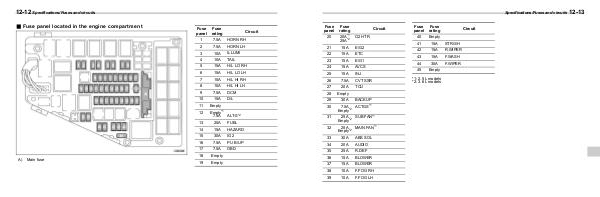

Specifications/Fuses and circuits
Fuse
panel Fuse
rating
20 20A *1
25A *2
Circuit
O2 HTR
21 15A E/G2
22 15A ETC
23 15A E/G1
24 15A AVCS
25 15A INJ
26 7.5A CVT SSR
27 20A TCU
28 Empty 29 30A
BACKUP
30 7.5A
ACTGS *1
Empty *2
31 25A
SUB FAN *1
Empty *2
32 25A
MAIN FAN *1
Empty *2
33 30A ABS SOL
34 20A AUDIO
35 25A R.DEF
36 15A BLOWER
37 15A BLOWER
38 10A F.FOG RH
39 10A F.FOG LH
Fuse
panel Fuse
rating 40 Empty 41 15A STRG/H
42 15A R.WIPER
43 15A F.WASH
44 30A F.WIPER
45 Empty
*1: 2.5 L models
*2: 3.6 L models
Circuit
12-13
