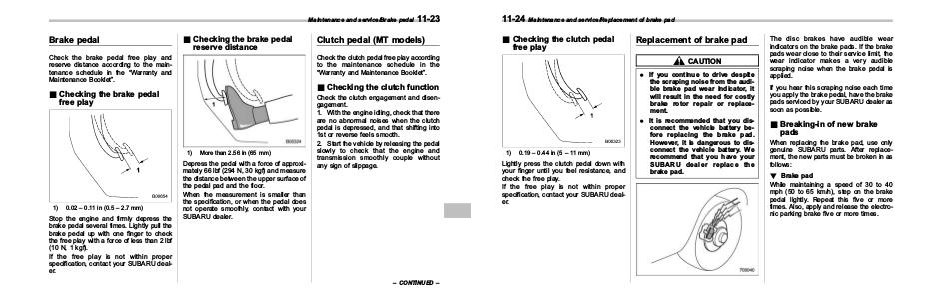

Maintenance and service/Brake pedal Brake pedal & Checking the brake pedal reserve distance Check the brake pedal free play and reserve distance according to the maintenance schedule in the “Warranty and Maintenance Booklet”. & Checking the clutch function 1) 1) 0.02 – 0.11 in (0.5 – 2.7 mm) Clutch pedal (MT models) Check the clutch pedal free play according to the maintenance schedule in the “Warranty and Maintenance Booklet”. & Checking the brake pedal free play Stop the engine and firmly depress the brake pedal several times. Lightly pull the brake pedal up with one finger to check the free play with a force of less than 2 lbf (10 N, 1 kgf). If the free play is not within proper specification, contact your SUBARU dealer. 11-23 More than 2.56 in (65 mm) Depress the pedal with a force of approximately 66 lbf (294 N, 30 kg
