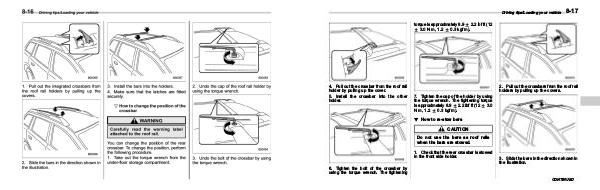

Driving tips/Loading your vehicle
8-17
torque is approximately 8.9 + 2.2 lbf ft (12
+ 3.0 N m, 1.2 + 0.3 kgf m).
4. Pull out the crossbar from the roof rail
holder by pulling up the cover.
5. Install the crossbar into the other
holder.
2. Pull out the crossbars from the roof rail
holders by pulling up the covers.
7. Tighten the cap of the holder by using
the torque wrench. The tightening torque
is approximately 8.9 + 2.2 lbf ft (12 + 3.0
N m, 1.2 + 0.3 kgf m).
! How to re-stow bars
CAUTION
Do not use the bars as roof rails
when the bars are stowed.
1. Check that the rear crossbar is stowed
in the front side holder.
3. Slide the bars in the direction shown in
the illustration.
6. Tighten the bolt of the crossbar by
using the torque wrench. The tightening
CONTINUED
